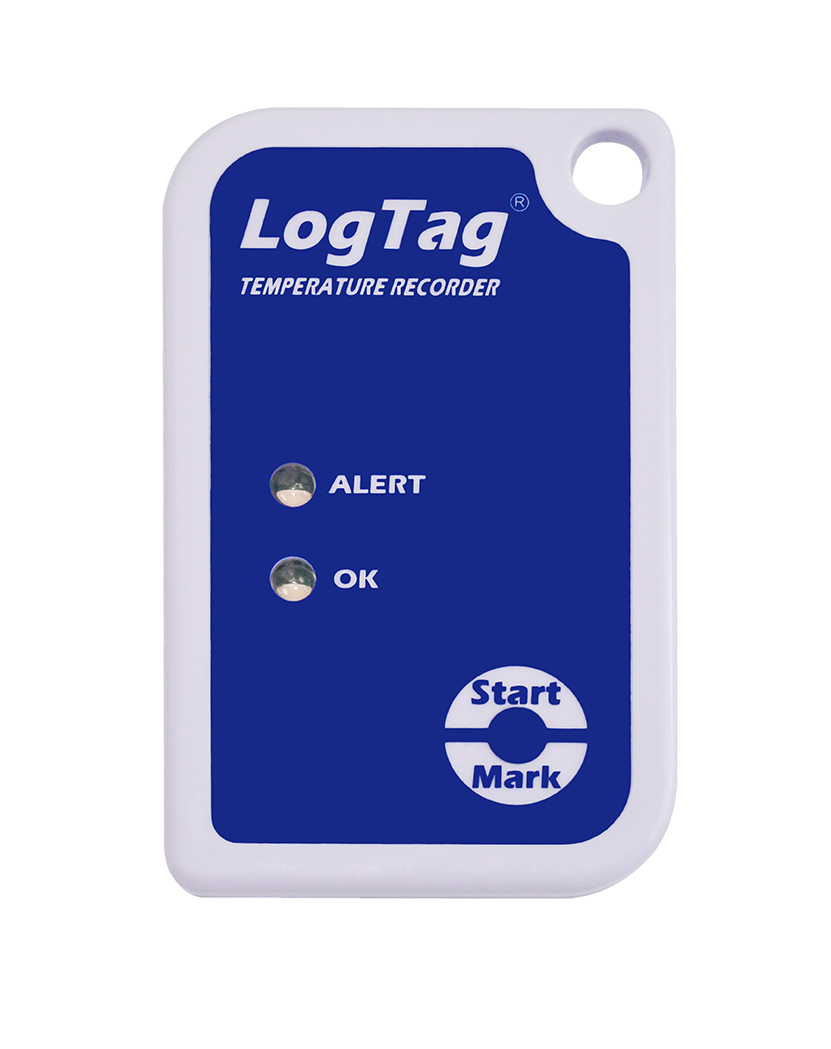

TRIX-16TemperatureDataLogger

By LogTag Data Loggers
From: £25.95

Overview

The LogTag TRIX-16 temperature data logger is the best value temperature data logger on the market. It contains an Integral temperature sensor housed within robust casing with a 16000 reading memory and clear LED alarm.

Customise this datalogger

Part of a suite of products designed to work as a complete monitoring system

  • Calibration certificate
  • Cradle - Required to download data
  • Protective enclosure
  • Bracket
* Calibration takes between 3 - 7 business days Add and customise

Visual Alarm

Green and red lights indicate if collected data is in or out of the user defined (acceptable) limits

IP65 and IP67

The TRIX8 has a robust IP65 design (IP67 with protective enclosure)

Well specified

-40 ~ + 85 °C range, 8000 readings, 30 sec ~ 60 min sample rate.

Information

Product Description

Please note: The TRIX-16 requires a USB interface cradle.

Choose the LogTag TRIX-16 temperature data logger to ensure safe temperature thresholds in your facility are never breached. This failsafe offering from LogTag is incredibly versatile, with a flexible temperature range of -40°C to +85°C (-40°F to +185°F) and capable of storing up to 16,000 readings. This temperature logger is compact yet robust, enclosed in a polycarbonate casing for ultra-protection. Suited to a range of industries, the TRIX-16 is a popular choice.

What makes the LogTag TRIX-16 so unique is its real time clock. This allows users to see the exact date and time when a temperature reading was taken, making for extremely precise data monitoring. This temperature data logger with alarm provides a clear warning sound whenever undesired temperature thresholds are infringed. Therefore, appropriate action can be implemented straight away.

This temperature monitoring device works hand in hand with the LogTag Analyzer software, allowing users to download a full breakdown of their data. Users can easily set up the TRIX-16 to operate exactly as they want it to, depending on what works best for them. It has a variety of settings to choose from, including a delayed start, sampling interval, as well as choosing a fixed or continuous amount of readings.

The LogTag data logger is a fantastic choice to ensure you comply with legal and government compliance. This includes guidelines such as RoHS, CE and FCC. This illustrates the high quality that users can expect from the TRIX-16, with reassurance that it can help meet international standards.

This data logger is fitted with a mounting lug so that it can be secured in place on shelves or racks, making it perfect for use in a variety of facility areas. With a fitted 3V battery, it has a battery life of 365-900 days which is ideal for use in transit.

For more information about the LogTag TRIX-16 data logger, contact our specialists at Loggershop by calling 01929 459459 or sending an email to [email protected].

Specifications

Manufacturer

LogTag

Parameter(s)

Temperature

Usage Type

Multiple Use

Connectivity

USB via interface

Sensor internal or external

Internal

Channels

1

Sensor type

Thermistor

Memory

16000 Temperature readings

Sample rate

30 seconds ~ 60 minutes

Range

-40°C ~ +85°C

Accuracy

+/- <0.5°C between -20°C and +40°C
Contact our calibration department for advice on offset adjustment.

Resolution

0.1°C

Material

Polycarbonate

Power

3V fixed battery

Battery Life

365~900 days

Dimensions

86mm (H) x 54.5mm (W) x 8.6mm (T)

Environment rating

IP65
IP67 when used in conjunction with the protective enclosure

Operating Conditions

-40°C ~ +85°C

Alarm

Flashing LED and in report

Features

LED with confidence and alarm flashing function
Push button start
21 CFR Part 11 compliance
WHO PQS EO6/06: PQS Code E006/00
EN12830

Computer Requirements

Windows PC

Consider these alternatives

LogTag Data Loggers

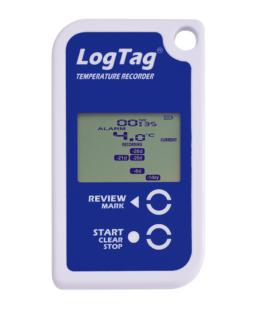

TRID307R
