RTR503B

RTR503B Wireless Humidity and Temperature Data Logger with External Sensor

From: £185.00

Humidity and temperature wireless data logger for recording air and appliance temperatures between 0°C ~ +55°C and humidity levels between 10 ~ 95%rH.

Product Description

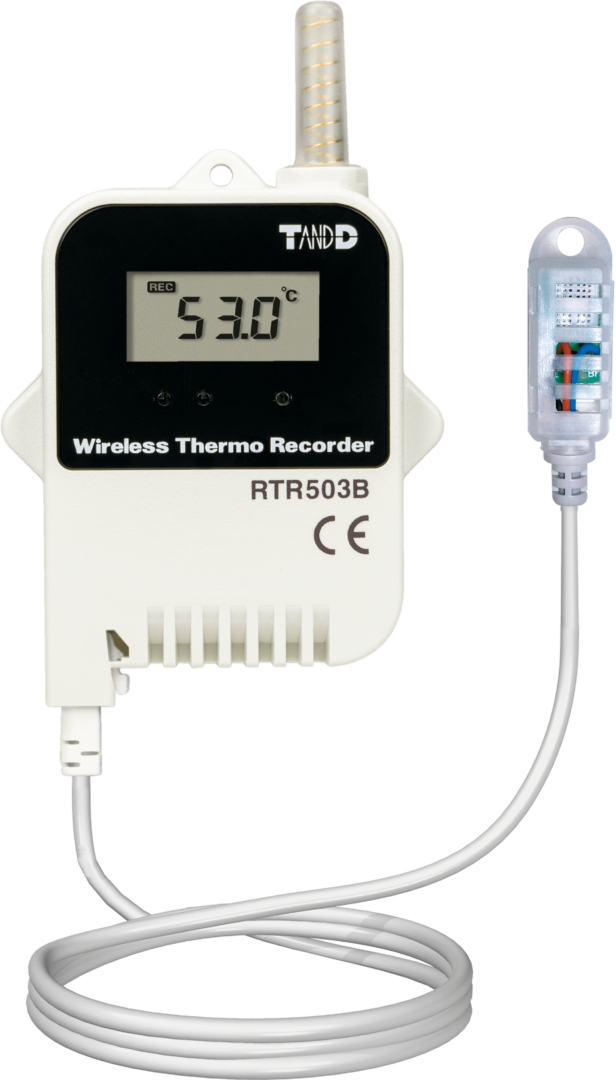

The highly efficient RTR503B humidity and temperature wireless data logger from T&D offers flexible connectivity with an LCD display and interchangeable TR-3310 °C/rH sensor mounted on 1M of cable. This innovative logger delivers humidity and temperature data to the WSS online service when used in conjunction with an RTR500B base station.

Measure and record humidity from 10 ~ 95% and temperature from 0°C ~ +55°C, view real-time temperature data on the local LCD display and remotely on any device connected to the internet with wireless data logger functionality.

This temperature and humidity sensor is small and compact, making it perfectly suited to applications where cloud based logging is required in tight spaces such as HVAC pipework or inside bottles held within incubators. It can be easily fixed into locations within an appliance or on a wall via the mounting hole.

Use the RTR503B humidity and temperature data logger with the designated base station via Bluetooth on any iOS or Android device, or USB for Windows PCs and laptops.

Use these wireless data loggers to create a cost effective network across your organisation, with flexible access options via LAN/WLAN/USB and even 3G GSM. This ensures that your data can be reliably retrieved and actioned regardless of existing I.T. infrastructure.

The RTR500B is supplied as standard with the TR-3310 humidity and temperature sensor and 3.6v user replaceable battery. It can be purchased with a long life battery upgrade or [PSU] external mains power adapter.

RTR500B T&D Data Logger Series Features

  • Bluetooth setup
  • Remotely access your data over the internet for free
  • Make it easy to store your data using free issued offline analytical and archiving utilities.
  • Wide range of communication devices including the RTR500DC handheld data collector for performing spot checks and analysis.
  • Robust and durable design.
  • Accurate data collection with re-calibration options.
  • User replaceable battery.

For more information on the RTR500B temperature and humidity data logger, get in touch with our friendly team at Loggershop. Call us on 01929 459459 or email sales@loggershop.co.uk.

Manufacturer

TandD

Parameter(s)

Humidity
Temperature

Usage Type

Multiple Use

Connectivity

Wireless radio to USB [RTR500BC]
Wireless radio to Network [RTR500BW]
Wireless radio to GSM [RTR-500MBS and RTR500MB]
Wireless radio to Handheld collector [RTR-500DC]

Sensor internal or external

External

Channels

1

Sensor type

Thermistor
Polymer Resistance

Memory

8000 °C and 8000 % reading back-up memory

Sample rate

1 reading a second ~ 1 reading every hour

Range

0°C ~ +55°C
10 ~ 95% rH

Accuracy

+/- 0.5°C
+/- 5% rH
Contact our calibration department for advice on offset adjustment.

Resolution

0.1°C
1% rH

Material

ABS Plastic with O-ring seal

Power

User replaceable battery
Mains with power supply adaptor

Battery Life

10 months - Standard battery
24 ~ 48 months - [L] Large battery

Dimensions

86mm x 47mm x 19mm - Standard battery
86mm x 47mm x 46.5mm - [L] Large battery

Environment

IP64 Splashproof
Sensor must be kept dry

Operating Conditions

-40°C ~ +80°C

Alarm

Email when using any RTR500WB base station
SMS text message when using RTR500MBS
On-line when using TandD Webstorage-service
On PC when using Current readings utility
Audible/Visual beacon with optional attachment for base station

Features

Free remote internet access
Free offline analytical and reporting utilities
Robust and durable design
Accurate and can be recalibrated
User replaceable battery

Product Brochure
RTR500B Catalog WPLSPDF5MB
Product Manual
RTR50xB - InstructionsPDF1MB
