RTR507BPrecisionWirelessHumidityandTemperatureDataLoggerwithExternalSensor

By T&D Data Loggers
From: £235.00

Overview

Precision humidity and temperature wireless  data logger for recording air and appliance temperatures between -30°C ~ +80°C and humidity levels between 0 ~ 99% rH.

Build a system

Part of a suite of products designed to work as a complete monitoring system

Customise this datalogger

Part of a suite of products designed to work as a complete monitoring system

  • Calibration certificate [Contact us for custom points]
  • Power upgrades
* Calibration takes between 3 - 7 business days Add and customise

Measurement Range

-30 °C to 80 °C and 0 to 99% rH via the precision probe supplied as standard

Connection Options

Bluetooth setup with wireless data collection via LAN/USB/WiFi/GSM base station options

Real-time data

Automated download with emails alarms and online cloud reporting via the free WebStorageService (WSS)

Information

Product Description

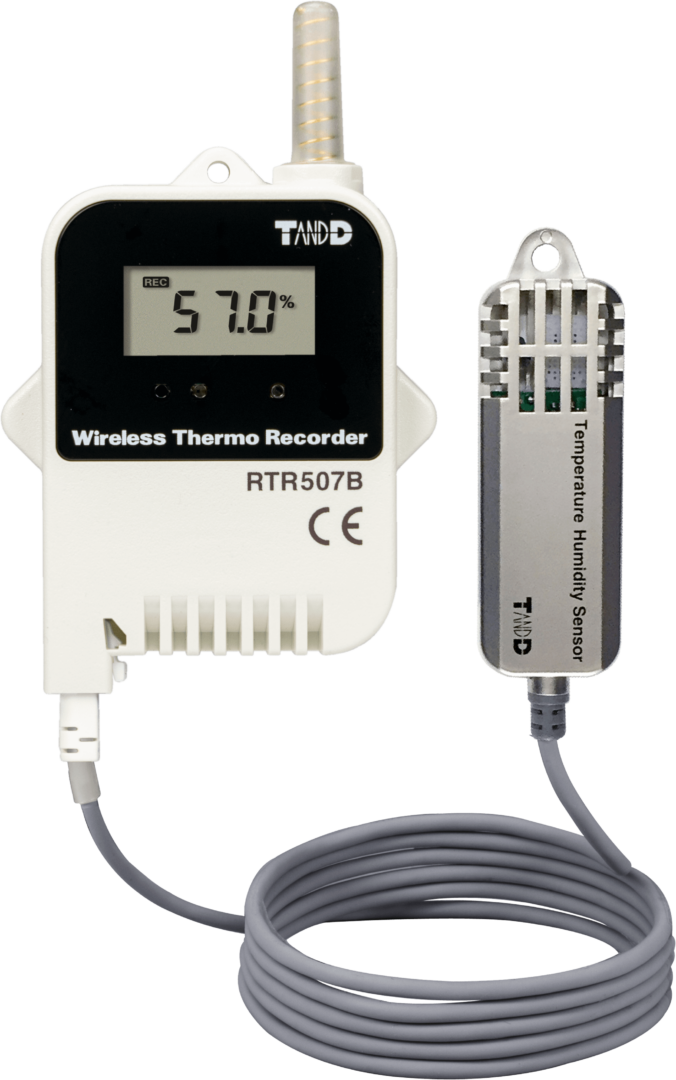

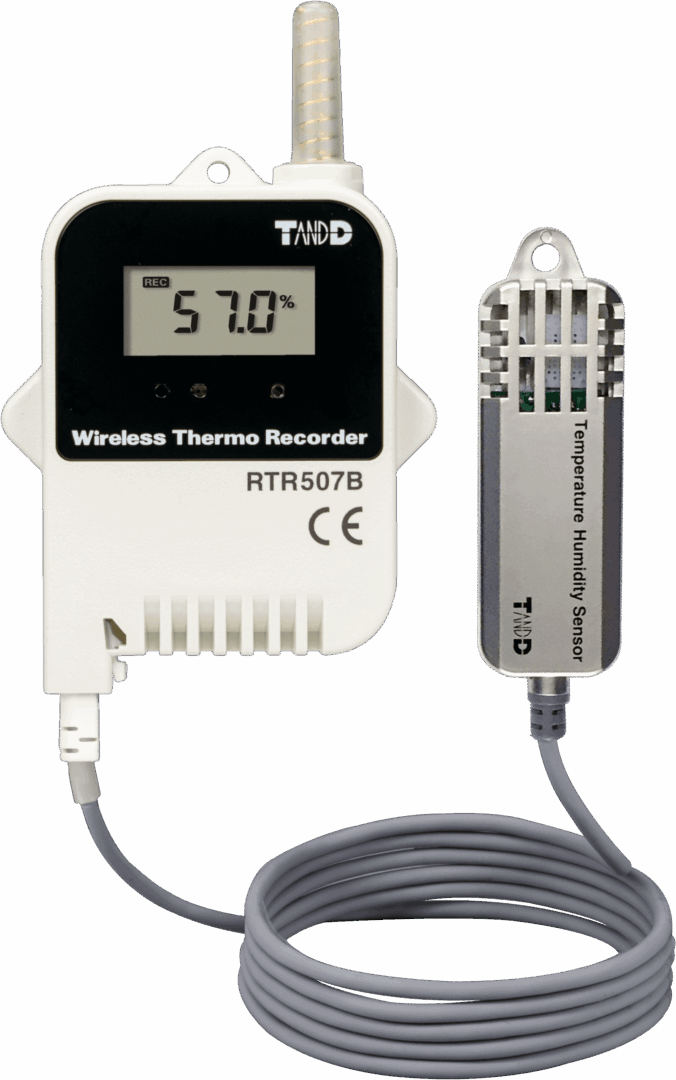

Collect precise humidity and temperature data with the RTR507B data logger with external sensor from T&D. With a sleek LCD display and interchangeable high accuracy HHB-3101 °C/rH sensor mounted on 1M of cable, the RTR507B makes data monitoring a completely seamless process. This temperature and humidity data logger can also quickly deliver data to the WSS online service when used in conjunction with an RTR500B base station.

With this data logger and sensor, users can measure and record humidity from 0-99% and temperature from -30°C-+80°C, view real-time temperature data on the local LCD display and remotely on any device connected to the internet.

This wireless temperature and humidity data logger is ideally suited to applications where there is a demand for precision at high humidity levels across a wide temperature range, for example deploying and recording accurate data within incubators and stability cabinets. The mounting hole allows the sensor to be fixed into location within the chamber or cabinet.

Simply partner your RTR507B with the designated base station via Bluetooth using a device running iOS or Android select or via USB on a Windows PC.

Create a cost effective, local or global, scalable network of data loggers with flexible access options via LAN/WLAN/USB and even 4G GSM, ensuring your data can be reliably retrieved and actioned irrespective of existing I.T infrastructure.

This wireless data logger is supplied as standard with a HHB-3101 humidity and temperature sensor and 3.6v user replaceable battery. It can also be purchased with a [L] long life battery upgrade or [PSU] external mains power adapter.

RTR507B Features

  • Bluetooth setup.
  • Remotely access your data over the internet for free.
  • Take control and ownership of your data using free issued offline analytical and archiving utilities.
  • Wide range of communication devices including the RTR500DC handheld data collector for performing spot checks and analysis.
  • Robust and durable design.
  • Accurate and can be recalibrated.
  • User replaceable battery.

If you would like specific advice or further information about the RTR507B data logger with external sensor, please get in touch with our friendly team at Loggershop. Call us on 01929 459459 or email [email protected].

Specifications

Manufacturer

TandD

Parameter(s)

Humidity
Temperature

Usage Type

Multiple Use

Connectivity

Wireless radio to USB [RTR500BC]
Wireless radio to Network [RTR500BW]
Wireless radio to GSM [RTR-500MBS and RTR500MB]
Wireless radio to Handheld collector [RTR-500DC]

Sensor internal or external

External

Channels

1

Sensor type

Platinum Resistance
Electrostatic Capacitance

Memory

8000 °C and 8000 % reading back-up memory

Sample rate

1 reading a second ~ 1 reading every hour

Range

-30°C ~ +80°C
0 ~ 99% rH

Accuracy

+/- 0.3°C
+/- 2.5% rH between 10 ~ 85%
Contact our calibration department for advice on offset adjustment.

Resolution

0.1°C
0.1% rH

Material

ABS Plastic with O-ring seal

Power

User replaceable battery
Mains with power supply adaptor

Battery Life

10 months - Standard battery
24 ~ 48 months - [L] Large battery

Dimensions

86mm x 47mm x 19mm - Standard battery
86mm x 47mm x 46.5mm - [L] Large battery

Environment

IP64 Splashproof
Sensor must be kept dry

Operating Conditions

-40°C ~ +80°C

Alarm

Email when using any RTR500WB base station
SMS text message when using RTR500MBS
On-line when using TandD Webstorage-service
On PC when using Current readings utility
Audible/Visual beacon with optional attachment for base station

Features

Free remote internet access.
Free offline analytical and reporting utilities
Robust and durable design.
Accurate and can be recalibrated.
User replaceable battery.
