RFCurrent2000A USB and Wireless 4~20mA Data Logger

£215.00

Current, USB or wireless radio data logger.

Quantity Price You Save
1+ £215 0%
5+ £202.10 6%
11+ £197.80 8%
30+ £184.90 14%
50+ £182.75 15%
100+ £176.30 18%

Product Description

The RFCurrent2000A is a compact data logger for monitoring and recording data delivered by sensors with a 4-20mA current output.

it is either battery or mains powered so it can be deployed as a handheld, situated on a desk or mounted to a wall using the innovative supplied bracket. View real-time data on the LCD screen, trigger local audible/visual alarms and connect to a USB computer for periodic analysis. If at a later date you want to link the data loggers up to deliver real-time alarms and data then we need to check signals and recommend the required number of RFC1000 repeater.

Ideally suited to clients looking for a quality analogue 4 ~ 20mA data logger that could be networked, should manually collecting data loggers become time consuming.

Hardware Features

  • Direct current connection via terminal block.
  • USB and Wireless connectivity .
  • Current data logger
  • Email and audible alarms.
  • LCD display.
  • Battery or optional mains powered.
  • Cloud services compatibility.

MT4 standard software Features

  • Engineering Units – Scale your current data against engineered parameters like PSI
  • Graph – Multi plot, multi parameter with zoom functions linked to statistics
  • Tabular – Time versus parameter data presented in a printable table
  • Reports – Powerful module which collates data collected from multiple devices
  • Workflows – Automate routine tasks such as download, configuration, reporting and saving collected data
  • Time markers and value lines –  Assist in organising data into stages and clearly presenting pass/fail limits
  • Advanced statistics – Sterilisation, MKT, time until threshold, mathematical channels and more..
  • .CSV export – Single button export results in generation of a fully formatted spreadsheet.
  • Annotation – Apply cooling flags and markers on your results
  • Configuration – user definable with multiple data logging batch programming facility
  • Secure archive – Automatically save critical data within a secure database

Supplied with: Sensors, battery, mounting/stand bracket , MT4 software and USB cable.

Optional:

  • MadgeTech Secure SVP for FDA 21 CFR Part 11 Compliance supported with GxP IQ/OQ/PQ validation documentation
  • MadgeTech Relay and Cloud services for real-time and alarm management on any internet enabled device.
  • Mains power adapter
  • Also available in 160mA and 3A measurement ranges
Manufacturer

Madgetech

Parameter(s)

Current

Usage Type

Multi use

Connectivity

USB and wireless radio

Sensor internal or external

Internal

Channels

1 channel

Memory

32,256 readings per channel

Sample rate

1 reading every second ~ 1 reading every 24 hours

Range

4 ~ 20 mA | -2mA ~ +30mA

Material

ABS Plastic

Power

Battery 9v Lithium or mains power adaptor

Battery Life

4 years typical at a 15 minute reading rate

Dimensions

See specification sheet

Environment

-20 °C to ~ 60 °C, 0 %RH to 95 %RH non-condensing

Alarm

Audible Alarm (built in), emails

Features

USB and Wireless , email & audible alarms, , LCD display, battery or mains powered

Product Brochure
rfcurrent2000A Data Sheet WPLS PDF 996 KB
Instruction Manual
rfcurrent2000A User Guide WPLS PDF 2 MB

Product Description

The RFCurrent2000A is a compact data logger for monitoring and recording data delivered by sensors with a 4-20mA current output.

it is either battery or mains powered so it can be deployed as a handheld, situated on a desk or mounted to a wall using the innovative supplied bracket. View real-time data on the LCD screen, trigger local audible/visual alarms and connect to a USB computer for periodic analysis. If at a later date you want to link the data loggers up to deliver real-time alarms and data then we need to check signals and recommend the required number of RFC1000 repeater.

Ideally suited to clients looking for a quality analogue 4 ~ 20mA data logger that could be networked, should manually collecting data loggers become time consuming.

Hardware Features

  • Direct current connection via terminal block.
  • USB and Wireless connectivity .
  • Current data logger
  • Email and audible alarms.
  • LCD display.
  • Battery or optional mains powered.
  • Cloud services compatibility.

MT4 standard software Features

  • Engineering Units – Scale your current data against engineered parameters like PSI
  • Graph – Multi plot, multi parameter with zoom functions linked to statistics
  • Tabular – Time versus parameter data presented in a printable table
  • Reports – Powerful module which collates data collected from multiple devices
  • Workflows – Automate routine tasks such as download, configuration, reporting and saving collected data
  • Time markers and value lines –  Assist in organising data into stages and clearly presenting pass/fail limits
  • Advanced statistics – Sterilisation, MKT, time until threshold, mathematical channels and more..
  • .CSV export – Single button export results in generation of a fully formatted spreadsheet.
  • Annotation – Apply cooling flags and markers on your results
  • Configuration – user definable with multiple data logging batch programming facility
  • Secure archive – Automatically save critical data within a secure database

Supplied with: Sensors, battery, mounting/stand bracket , MT4 software and USB cable.

Optional:

  • MadgeTech Secure SVP for FDA 21 CFR Part 11 Compliance supported with GxP IQ/OQ/PQ validation documentation
  • MadgeTech Relay and Cloud services for real-time and alarm management on any internet enabled device.
  • Mains power adapter
  • Also available in 160mA and 3A measurement ranges
Manufacturer

Madgetech

Parameter(s)

Current

Usage Type

Multi use

Connectivity

USB and wireless radio

Sensor internal or external

Internal

Channels

1 channel

Memory

32,256 readings per channel

Sample rate

1 reading every second ~ 1 reading every 24 hours

Range

4 ~ 20 mA | -2mA ~ +30mA

Material

ABS Plastic

Power

Battery 9v Lithium or mains power adaptor

Battery Life

4 years typical at a 15 minute reading rate

Dimensions

See specification sheet

Environment

-20 °C to ~ 60 °C, 0 %RH to 95 %RH non-condensing

Alarm

Audible Alarm (built in), emails

Features

USB and Wireless , email & audible alarms, , LCD display, battery or mains powered

Product Brochure
rfcurrent2000A Data Sheet WPLS PDF 996 KB
Instruction Manual
rfcurrent2000A User Guide WPLS PDF 2 MB

Similar Products

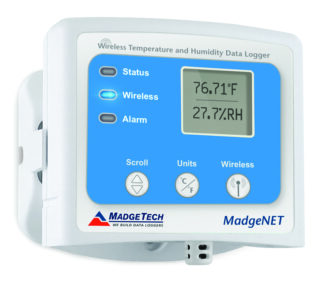

  • RFRHTemp2000A USB and Wireless Humidity Temperature Data Logger

    Humidity and temperature USB or wireless radio data logger.

    From £225.00
  • RFPRHTemp2000A USB and Wireless Pressure Humidity Temperature Data Logger

    Pressure, humidity and temperature USB or wireless radio data logger.

    From £295.00
  • RFTCTemp2000A USB and Wireless Thermocouple Temperature Data Logger



    Thermocouple temperature USB or wireless radio data logger

    From £215.00

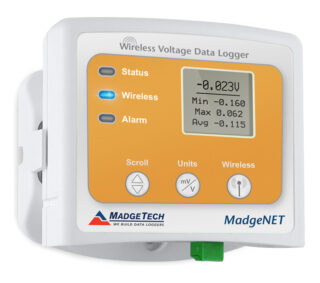

  • RFVolt2000A USB and Wireless Voltage Data Logger
